Waste Water Pump Systems

Complete waste water systems which combine easy installation, maintenance and reliability with versatility for almost any application

Flow Free Pump Master

A complete tried and tested waste water pump system for any application.

32mm (1″ 1/4) & 40mm (1″ 1/2) Outlet Sizes

Various pumps from Jung and KSB to configure to your specific requirements.

Packages Include:

1 x Automatic Pump
1 x Internal Pipework
1 x Brass swing check valve
1 x Carbon activated vent

Vents and inlets precision cut on site to fit your configuration. Pump Master systems are located where there is no easy access to main drainage such as: Basements, Plant rooms, Gardens, Offices (under counter for tea points / kitchenettes), Restaurants, Kitchens, Washrooms, Hotels, Schools, Leisure centres

There are many other applications for foul and surface water, conctat us to book as assessment or find out more.

Suitable for a wide range of applications

Offices, Restaurants, Hotels, Kitchens, Schools, Shops, Clubs, Washrooms, Hospitals, Warehouses and many other Domestic, Commercial and Industrial purposes

Call us

Simple all-in-one tank, pump and fittings in one compact package

The PUMP MASTER is manufactured from glass fibre and polyester resin and is a durable tank which can handle hot water and has a bolt down lid with a seal.

The tank has a smooth white finish consisting of isophthalic polyester gel coat and resin enriched lining.

The tanks are fitted out with 32mm (1”1/4) or 40mm (1”1/2) high pressure discharge pipework to suit pump type. A brass swing check valve is supplied which fits external to the tank. A cable gland is fitted for the pump cable to exit the tank.

A carbon activated vent is supplied with the tank if tank cannot be vented to atmosphere. (It is crucial that the tank is vented)

This system can be supplied as a complete package or separately.

Vent and inlets are cut on site to suit. If you require low level inlets into the tank it is recommended that low level floats are purchased (Jung pumps only).

An alarm unit with alarm switch can be used with these systems. If you require an alarm unit please let us know, our engineers are experts in providing monitoring systems to alert you of any problems with your waster water system before or as soon as they arise.

Please note: These systems are not sewage disposal units and cannot be used with toilets

Waste water pump installation

Installing commercial waste water pumps is a crucial step in ensuring the proper functioning of a business’s plumbing and drainage system. Our PUMP Master pump systems are responsible for transporting waste water and sewage away from buildings and into the proper treatment facilities.

We can arrange FREE of charge site visits to put together a package to suit the needs of all customers

For domestic, commercial and industrial installations, full surveys are undertaken and we can specify works and equipment exacting to your needs.

Whether your waste water system is in need of a full pump system package, spare pumps and parts, control panels and floats contact us today to book a survey.

The installation process for commercial waste water pumps typically begins with a thorough assessment of the existing plumbing and drainage system. This includes identifying any potential issues or challenges that may need to be addressed before the pumps can be installed. Once the assessment is complete, the pumps will be carefully selected and sized to meet the specific needs of the building and its usage.

The installation itself is carried out by our team of experienced and licensed professionals. They will ensure that your pumps are properly connected to the existing plumbing and drainage system, and that all necessary safety measures are in place. This may include the installation of alarms and monitoring systems to alert building staff in the event of a problem or failure. Once the installation is complete, the pumps will be tested to ensure that they are functioning properly and that all connections are secure. Our team will also provide instructions for operation and maintenance to ensure your system performs as expected, all year round.

Book an assessment

		U3 KS, 4m U3 KS spezial, 4m	U3 KS, 10m U3 KS spezial, 10m	U3 K, 10m U3 K spezial, 10m
	[kg]	3.5	4.4	3.8
	DN	32	32	32
	[mm]	10	10	10
S1	35 °C
S2	60 °C	10 min	10 min	10 min
S3	60 °C	30%	30%	30%
P1	[W]	320	320	320
P2	[W]	220	220	220
U	[V]	1/NPE -230	1/N/PE -230	1/N/PE -230
f	[Hz]	50	50	50
i	[A]	1.4	1.4	1.4

		U5 K/KS	U6 KE/KES	U6 KD/KDS	U6 KES
	[kg]	4.7 / 4.5	5.9 / 5.3	6.6 / 5.8	5.3
	DN	32	32	32	32
	[mm]	10 / 20	10 / 20	10 / 20	10 / 20
P1	[W]	520	750	750	750
P2	[W]	380	490	550	490
U	[V]	1/N/PE -230	1/N/PE -230	3/PE -400	1/N/PEx230
f	[Hz]	50	50	50	50
i	[A]	2.3	3.3	1.4	3.3

		US 62 E / ES US 73 E / HE / ES / HES	US 62 D / DS US 73 D / DS	US 102 E / ES US 103 E / HE / ES HES	US 102 D / DS US 103 D /DS
	[kg]	12.6 / 12.7	12.8 / 12.9	14.3 / 14.4	14.3 / 14.4
	DN	1 1/2″	1 1/2″	1 1/2″	1 1/2″
	[mm]	10 / 30	10 / 30	10 / 30	10 / 30
P1	[kW]	0.83	0.85	1.37	1.36
P2	[kW]	0.5	0.6	0.98	1.06
U	[V]	1/N/PE -230	3/PE -400	1/N/PE -230	3/PE -400
f	[Hz]	50	50	50	50
i	[A]	3.9	1.4	6.0	2.4

H[m]	1	2	3	4	5	6
U3	6.5	6.0	5.7	5.0	4.0	2.4	Q[m³/h]

H[m]	1	2	3	4	5	6	7	8	9
								Q[m³/h]
U5	11.5	10.5	9.0	7.5	6.5	4.5	2.5
U6	15.5	14.5	13.0	11.5	9.5	8.0	6.0	4.0	1.5

H[m]	1	2	3	4	5	6	7	8	9
								Q[m³/h]
U5	11.5	10.5	9.0	7.5	6.5	4.5	2.5
U6	15.5	14.5	13.0	11.5	9.5	8.0	6.0	4.0	1.5

H[m]	1	2	3	4	5	6	7	8	9	10	11	12	13	14	16
	Q[m³/h]
US 62 E /ES	19	17	15	12	10	8	6	4	2
US 62 D / DS	22	20	17	15	12	10	8	6	4
US 102 E / D/ ES / DS	28	26	23	21	19	17	15	12	10	8	5	2
US 152 E / ES	30	29	27	24	22	20	18	15	13	11	8	6	3	1
US 152 D / DS	31	30	28	26	23	21	19	17	14	12	10	8	5	3
US 151 E / D / ES / DS	40	39	37	35	33	31	29	26	23	20	17	14
US 251 D / DS	54	52	51	49	47	45	43	40	38	35	32	29	25	21	10

		Ama-Drainer N 301	Ama-Drainer N 303
Head		6.5m max.	12.5m max.
Flow rate		10m³/h max.	14m³/h max.
Immersion depth		2m max.	2m max.
Voltage / frequency		230V / 50Hz	230V / 50Hz
Starting current		4.1 A	11.5 A
Maximum temperature, continuous		0 to 50 °C	0 to 50 °C
Maximum temperature, temporary		+90 °C	+90 °C
Particle size (maximum diameter)		10 mm	10mm
Residual water level (type NE for manual operation)		15 mm min.	15 mm min.
Power input		430 W max.	1050 W max.
Enclosure		IP68	IP68
Power cable	Type	H07RN8-F 3×1²	H07RN8-F 3×1²
	SE	H07RN8-F 3×0, 75²	H07RN8-F 3×0, 75²
Frequency of starts (starts/hour)		30 max.

We specify the correct waste water pump for your exact requirements

Jung Pumps

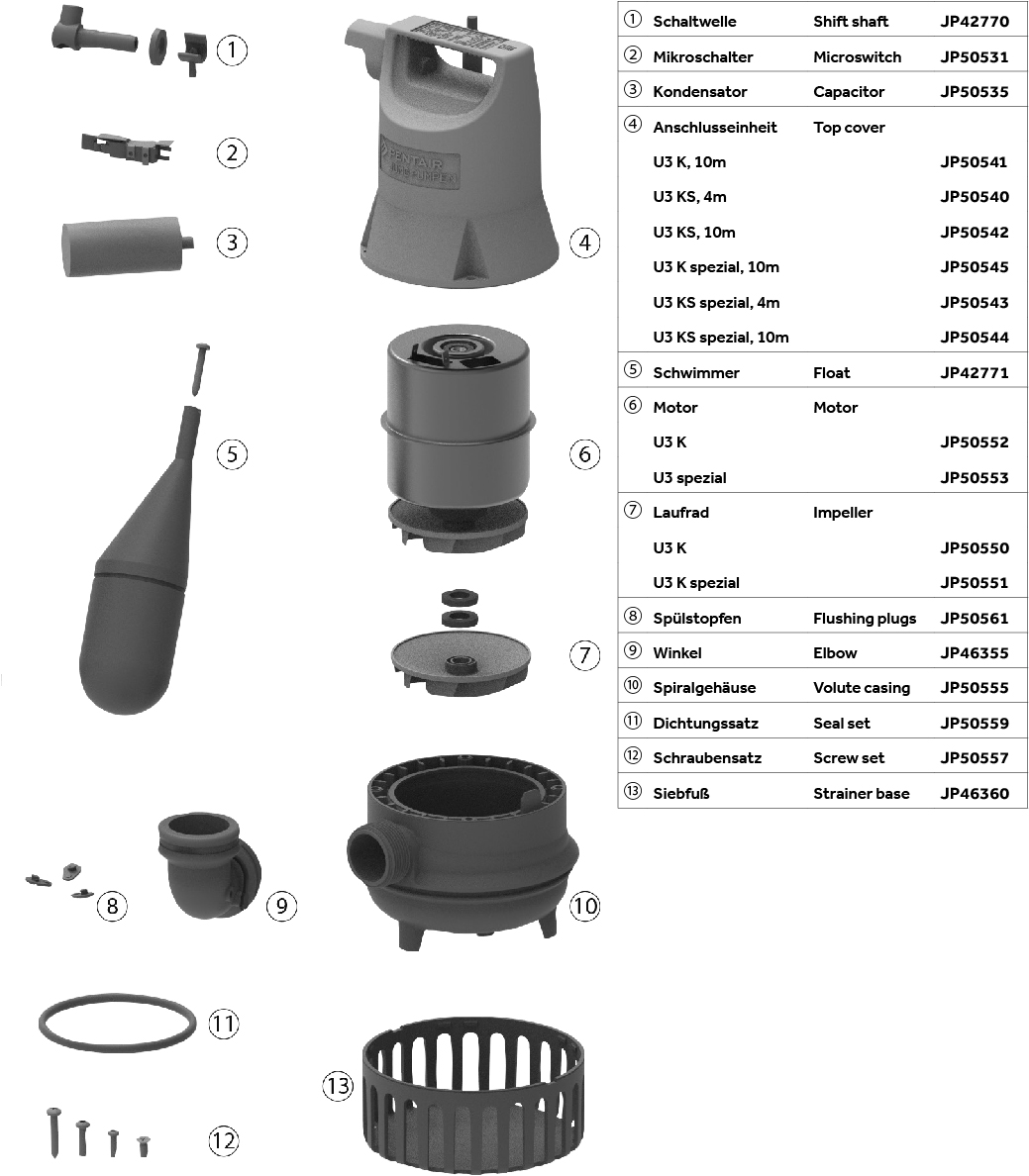

U3KES

Max Head	7m
Max Flow	6.5 m³/h
Fluid temp	35°c (60°c temporarily 10min)
Discharge	1″ 1/4
Max solids	10mm

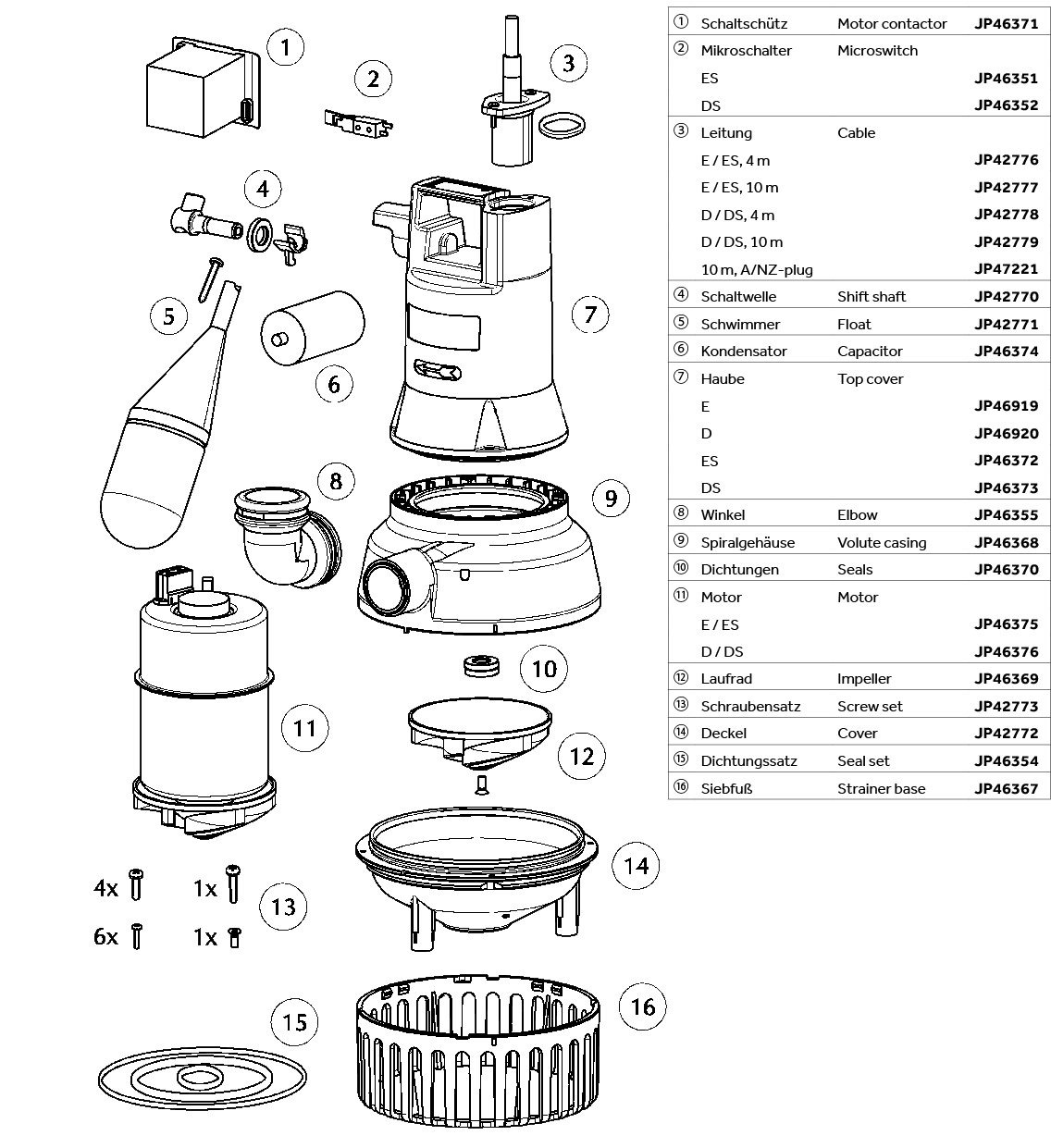

U6KES

Max Head	9.5m
Max Flow	15.5 m³/h
Fluid temp	35°c (60°c temporarily 10min)
Discharge	1″ 1/4
Max solids	10mm

US73ES

Max Head	9m
Max Flow	19 m³/h
Fluid temp	40°c (60°c temporarily 10min)
Discharge	1″ 1/4
Max solids	10mm

US73HES High Temperature

Max Head	9m
Max Flow	19 m³/h
Fluid temp	90°c
Discharge	1″ 1/2
Max solids	30mm

KSB Pumps

	Ama-Drainer N 301	Ama-Drainer N 303
Head	6.5m max.	12.5m max.
Flow rate	10m³/h max.	14m³/h max.
Immersion depth	2m max.	2m max.
Voltage / frequency	230V / 50Hz	230V / 50Hz
Starting current	4.1 A	11.5 A
Maximum temperature, continuous	0 to 50 °C	0 to 50 °C
Maximum temperature, temporary	+90 °C	+90 °C
Particle size (maximum diameter)	10 mm	10mm
Residual water level (type NE for manual operation)	15 mm min.	15 mm min.
Power input	430 W max.	1050 W max.
Enclosure	IP68	IP68
Power cable	Type	H07RN8-F 3×1²	H07RN8-F 3×1²
	SE	H07RN8-F 3×0, 75²	H07RN8-F 3×0, 75²
Frequency of starts (starts/hour)

	Ama-Drainer N 301	Ama-Drainer N 303
Head	6.5m max.	12.5m max.
Flow rate	10m³/h max.	14m³/h max.
Immersion depth	2m max.	2m max.
Voltage / frequency	230V / 50Hz	230V / 50Hz
Starting current	4.1 A	11.5 A
Maximum temperature, continuous	0 to 50 °C	0 to 50 °C
Maximum temperature, temporary	+90 °C	+90 °C
Particle size (maximum diameter)	10 mm	10mm
Residual water level (type NE for manual operation)	15 mm min.	15 mm min.
Power input	430 W max.	1050 W max.
Enclosure	IP68	IP68
Power cable	Type	H07RN8-F 3×1²	H07RN8-F 3×1²
	SE	H07RN8-F 3×0, 75²	H07RN8-F 3×0, 75²
Frequency of starts (starts/hour)	30 max.

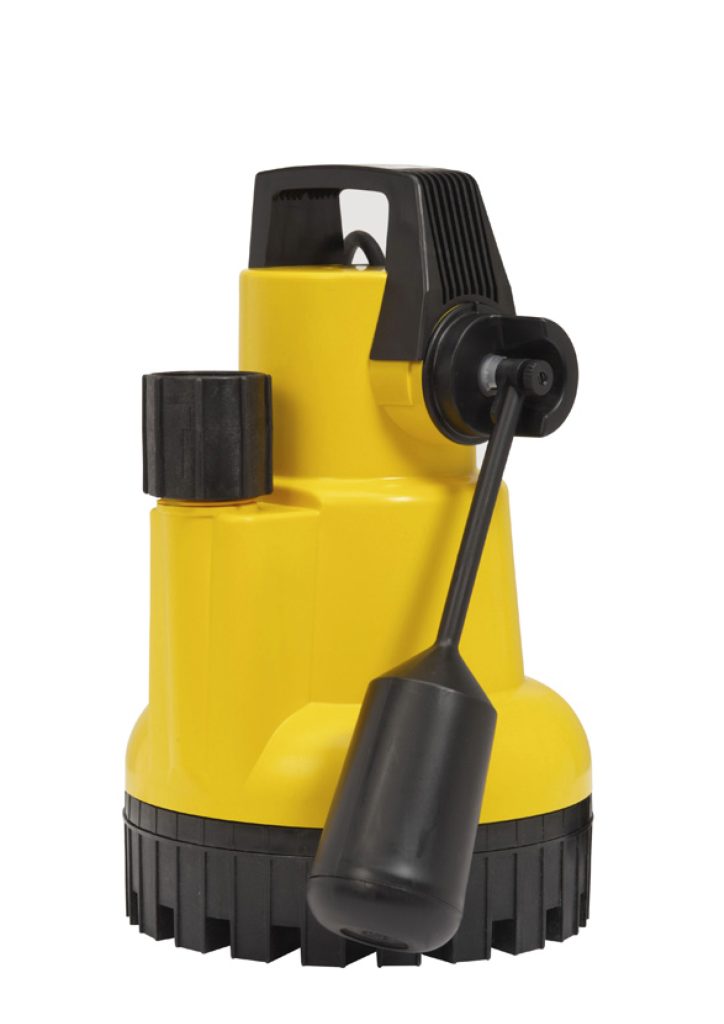

Ama-Drainer 301
c/w 5m Cable

Max Head	6.5m
Max Flow	174 l/min
Fluid temp	40°c Max
Discharge	1″ 1/4
Max solids	10mm

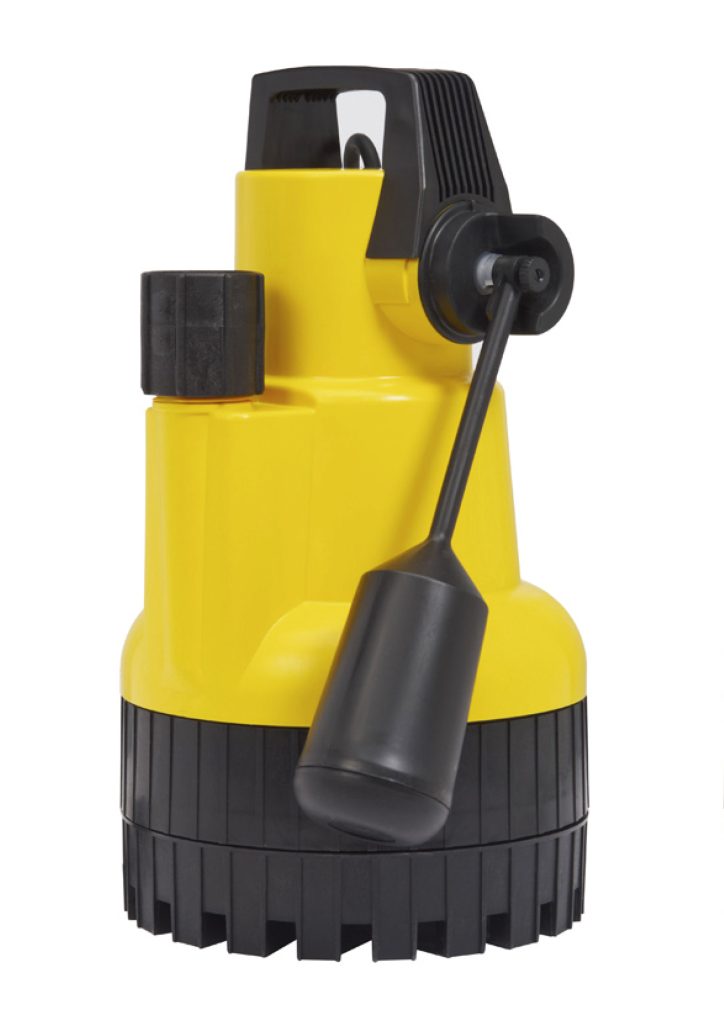

Ama-Drainer 303
c/w 5m Cable

Max Head	12.5m
Max Flow	234 l/min
Fluid temp	40°c Max
Discharge	1″ 1/4
Max solids	10mm

Waste water pump servicing

At Flow Free Services, we understand the importance of maintaining a properly functioning commercial waste water pump system. Regular servicing and maintenance is crucial for ensuring that these systems continue to operate efficiently and effectively, preventing costly repairs and downtime.

The PUMP Master system has a 6 month maintenance schedule

Some pump sets may need extra visits for cleaning depending on the usage and our engineers can advise on how many visits per year are required as a recommendation during assessment of your exact requirements. We ensure the maintenance schedule will keep your system running smoothly and safely.

A well-maintained commercial waste water pump system is essential for the health and safety of both building occupants and the environment. These pumps play a critical role in removing waste water and sewage from a building, and if they are not functioning properly, it can lead to serious health hazards and environmental damage. Regular servicing and maintenance helps to identify and address any potential issues before they become major problems, keeping your pump system running smoothly.

Regular maintenance also helps to extend the life of the pump system and reduce the need for costly repairs or replacements. Our team of experienced technicians will conduct a thorough inspection and cleaning of the pump system, checking for any wear or damage and making any necessary repairs or adjustments. We will also check the system’s electrical and mechanical components, ensuring that they are functioning correctly and efficiently.

In addition to regular servicing, our team is also available for emergency repairs and maintenance. We understand that pump system failures can happen at any time and can cause significant disruption to your business operations. Our team is available 24/7 to respond to any emergency situations and quickly get your system back up and running.

At Flow Free Services, we are committed to providing our clients with the highest level of service and quality. We will work closely with you to create a customised maintenance plan that meets the specific needs of your commercial waste water pump system, ensuring that it is always running at peak performance. Contact us today to schedule your next service appointment or to configure a servicing and maintenance plan to keep your systems in perfect working order.

Get in touch

Advanced floats for critical applications

Flow Free

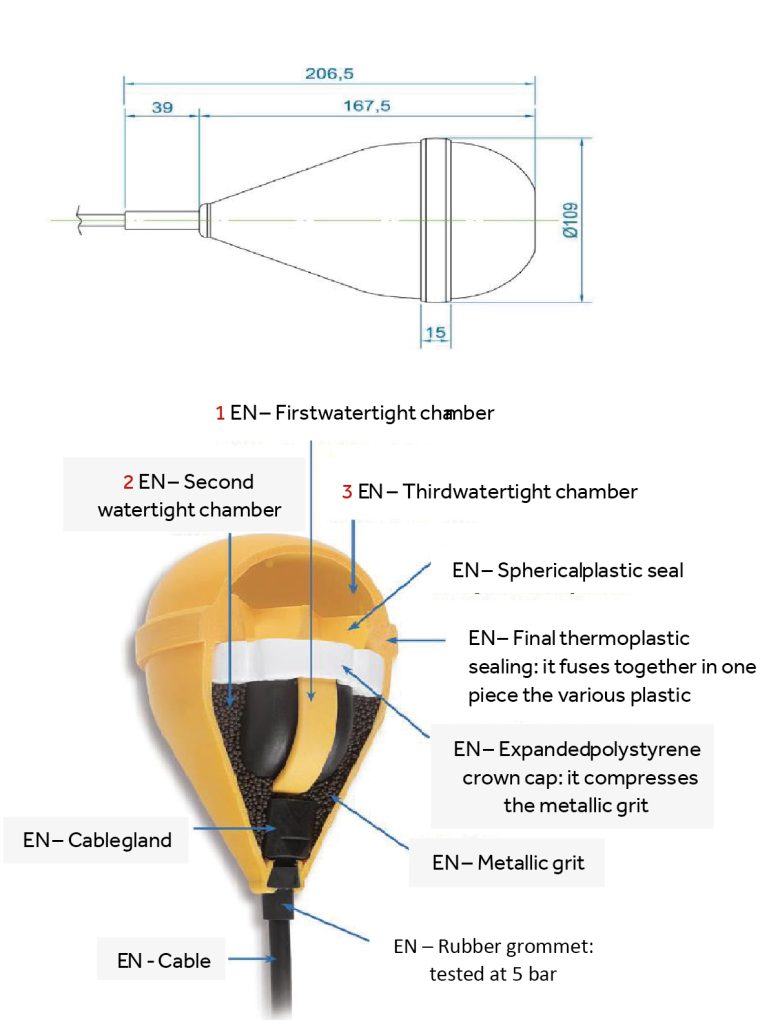

TECNOPLASTIC – FLOAT SWITCH

Unlike traditional floats that float on the water’s surface, the taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Technical Specification

Activation angle	20°
Approvals	CE, EAC,TÜV
Cable length	10m
Cable type	H05RN-F
Depth Max	20m
Fixing kit included	No
Function	Changeover(SPDT)
Insulation class	I
IP Class	IP68
Material	Polypropelene
Operating temperature	50°c
Rated current	8A
Specific gravity	0.95 – 1.058 kg / dm³
Supply voltage	250 V
